Intel Arc B570 vs Arc A750: Which Is the Better Budget GPU?

The Intel Arc B570 and Arc A750 are two budget GPUs for 1080p gaming, but which is the better GPU? Which one should you buy?

Picture of Acer Nitro Intel Arc B570 vs ASRock Arc A750 — Acer Nitro Intel Arc B570 vs ASRock Arc A750 (Image via Acer | ASRock)

Many users are still confused between the Intel Arc B570 and Arc A750 as the budget gaming GPU market is quite convoluted, even within Intel’s own products. The former is a 500-class GPU, while the latter is a 700-class. Therefore, you would assume the Arc B570 would be the better choice, but the Arc B570 has more memory. This begs the question: Which is better for budget 1080p gaming? That’s exactly what we plan to answer in this article with a detailed comparison of the two GPUs. Read on to learn more.

5 PCIe Gen 5 and Gen 4 SSDs for Budget Gamers

Note: Parts of this article are subjective and reflect the writer’s opinions.

Intel Arc B570 vs Arc A750: Detailed Comparison

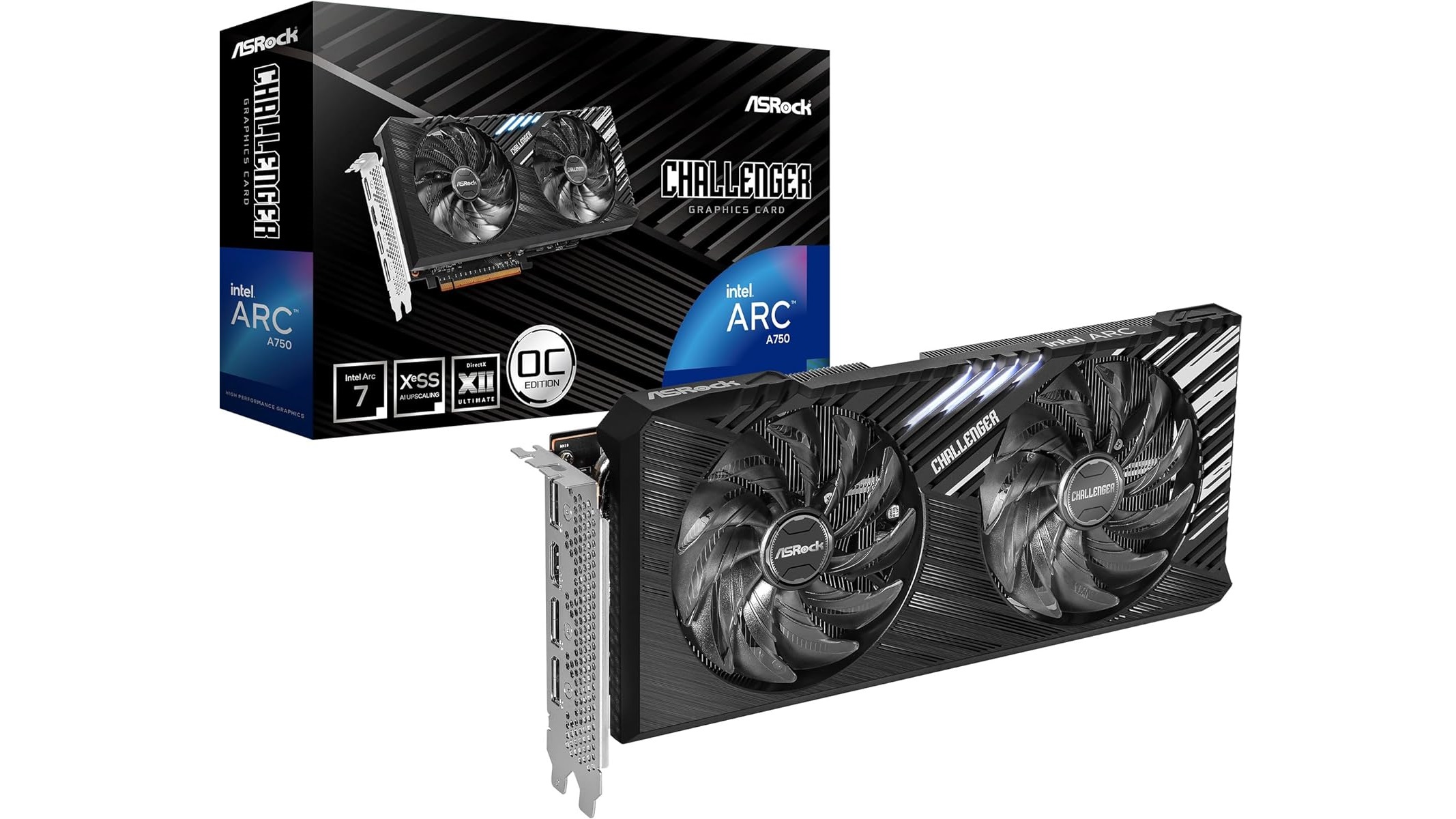

Picture of ASRock Intel Arc A750 Challenger SE — ASRock Intel Arc A750 Challenger SE (Image via ASRock)

The Intel Arc B570 is designed on the latest Battlemage architecture, which is why the model number starts with B. On the other hand, the Arc A750 is based on the older Alchemist architecture, so it starts with A.

The newer architecture is better, so the Arc B570 should be better. However, it is also a lower-class GPU. Will the performance benefits from the newer architecture be enough for this lower-class card to beat the higher-class Arc A750? Let’s find out in this detailed comparison.

Specs Comparison

These are the specs of the Intel Arc B570 and Arc A750:

Specifications	Intel Arc B570	Intel Arc A750
Architecture	Battlemage	Alchemist
Shader cores	2304	3584
RT cores	18	28
TMUs	144	224
ROPs	80	112
Base core clock speeds	2500 MHz	2050 MHz
Boost core clock speeds	2500 MHz	2400 MHz
Memory capacity	10GB GDDR6	8GB GDDR6
Memory bus width	160-bit	256-bit
Memory bandwidth	380 GB/s	512.0 GB/s
Manufacturing node	5nm	6nm
Thermal design power (TDPs)	150W	225W

As usual, the Intel Arc A750 has more shader cores, RT cores, TMUs, ROPs, and memory bandwidth than the Intel Arc B570. This is to be expected as the former is a higher 700-class graphics card. However, the latter has 10GB VRAM, which should help in games that need more memory.

Performance Comparison

Here’s how the Intel Arc B570 and Arc A750 perform in some popular games:

Games	Intel Arc B570	Intel Arc A750
Shadow of the Tomb Raider	109 FPS	87 FPS
Ratchet & Clank: Rift Apart	74 FPS	59 FPS
The Last of Us: Part 1	66 FPS	44 FPS
God of War Ragnarok	89 FPS	82 FPS
Alan Wake 2	66 FPS	56 FPS
Stalker 2	46 FPS	35 FPS
Cyberpunk 2077	75 FPS	64 FPS
The Witcher 3 Next Gen	87 FPS	80 FPS
Doom Eternal	128 FPS	98 FPS
Metro Exodus Enhanced Edition (RT)	80 FPS	89 FPS

Note: The two GPUs tested here were evaluated at a 1080p resolution with High/Ultra Settings, unless otherwise specified. All the FPS numbers were sourced from the Intel Arc Testing channel on YouTube. For the tests, the two graphics cards were paired with a Ryzen 7 7800X3D CPU.

On average, the Intel Arc B570 delivered 18.1% more FPS than the Arc A750. The former also has more VRAM, which helped in games like The Last of Us: Part 1, where it performed significantly higher than the latter. However, Metro Exodus Enhanced Edition is purely a ray tracing game, where the Arc B570 scores more, despite having fewer RT cores. This shows a decent performance difference between the two cards in ray tracing.

Price Comparison

Picture of Acer Nitro Intel Arc B570 — Acer Nitro Intel Arc B570 (Image via Acer)

The Intel Arc B570 is currently selling for $249.99 on Amazon, but it goes down to $229 or $239 sometimes. On the other hand, the Intel Arc A750 is available for $199.99 on Amazon. Therefore, the new GPU is 25% more expensive than the old one.

Final Verdict on Intel Arc B570 vs Arc A750

The Intel Arc B570 delivers around 18% more FPS than the Arc A750 on average in many popular games. Therefore, the former is the better GPU. The Arc B570 also has 2GB more VRAM, which future-proofs it. However, it is also 25% more expensive. Given its higher performance and more memory, we recommend buying the new Intel card over the other.

Besides, if you are lucky, you can find the Arc B570 for around $229 or $239 sometimes, which is a significantly better deal. Only users on a really tight budget can consider buying the Arc A750, but we don’t recommend it due to its abysmal performance in many UE5 games, and it also tends to have more driver issues.
