Vertical vs Horizontal GPU Mounting: Does It Impact Thermals in 2025 Cases?

Vertical vs horizontal GPU mounting: Does it affect thermals in 2025? Find out which setup keeps your GPU cooler and what to watch out for.

Vertical VS Horizantal GPU mounting, which makes sense in 2025 — Vertical VS Horizontal GPU mounting, which makes sense in 2025 (Image via Author | Deltias Gaming)

Ever since I built my first modern gaming PC, the question of vertical vs. horizontal GPU mounting has always been on my mind. Over the years, I have built multiple rigs featuring both configurations, and while vertical mounting looks cool, there are a few things you need to watch out for.

Many cases on the market now offer options for both vertical and horizontal GPU mounting right out of the box, and some even come with high-quality riser cables. So, let’s check whether turning a graphics card upright has any real effect on performance or if it is mostly about appearance.

Since GPUs produce a significant amount of heat under load, cooling is an important factor to consider in the overall performance and efficiency of the system. Most cards rely on fans and heatsinks to bring in fresh, cool air and move heat away from the GPU die. To ensure proper functionality of the built-in cooling setup, proper case airflow is essential.

Cool air should enter through the front or bottom, while warm air exits from the top or rear. This article explores how each mounting style impacts temperatures and whether modern case designs are shifting the balance one way or the other.

Horizontal GPU Mounting: The Safe Bet

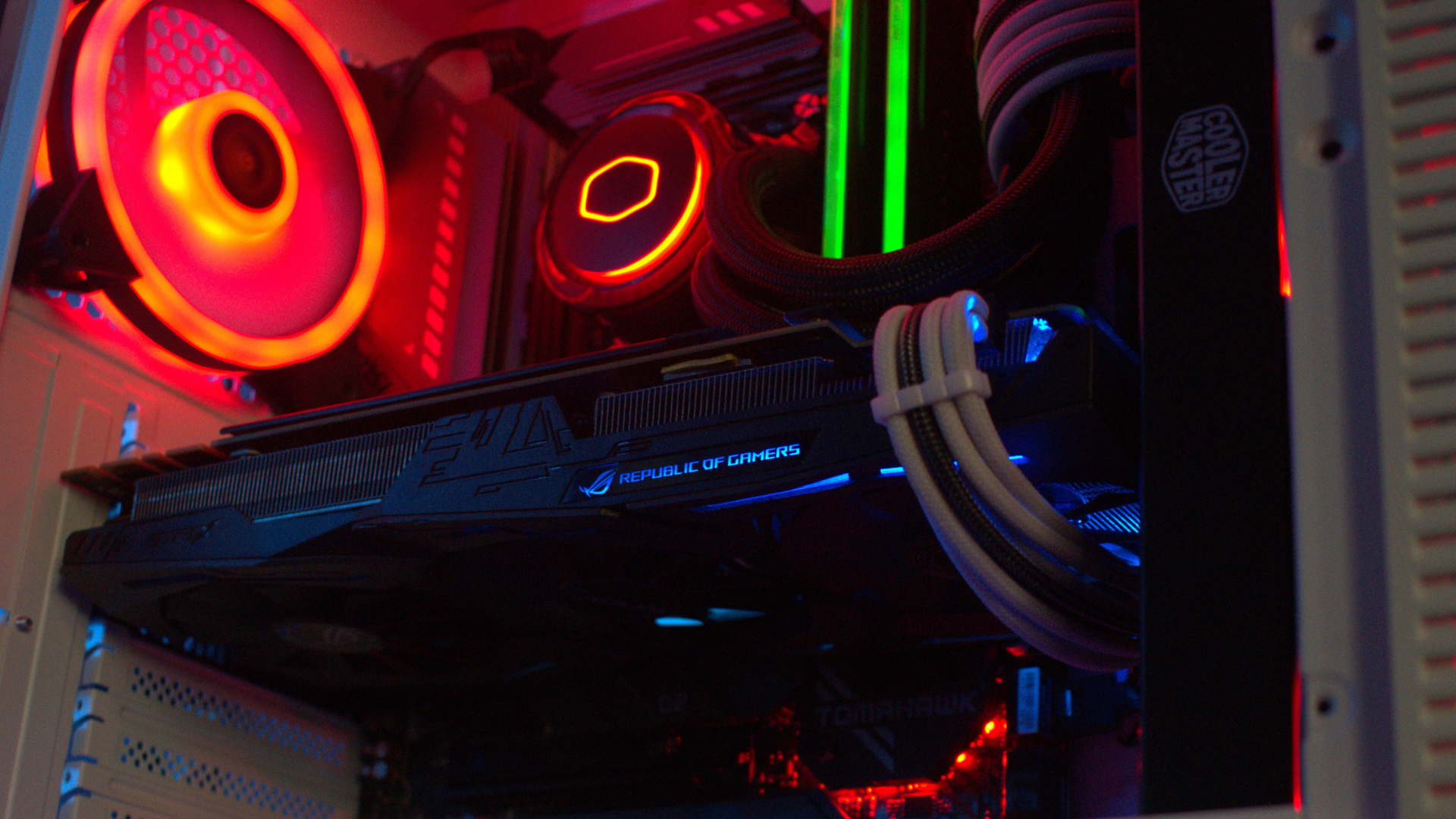

Try to maintain atleast 30-40 mm of clearance from a glass panel. — Try to maintain at least 30-40 mm of clearance from a glass panel. (Image via Author | Deltias Gaming)

The traditional horizontal placement is still the most airflow-friendly setup. It positions the GPU away from the side panels, ensuring unimpeded air intake. Temperatures for most cards in this setup at a decent ambient threshold hover around the mid-sixty degrees Celsius mark. It also simplifies installation and supports mainstream fan layouts. For air-cooled GPUs, this setup is hard to beat.

Vertical GPU Mounting: Stylish but Tricky

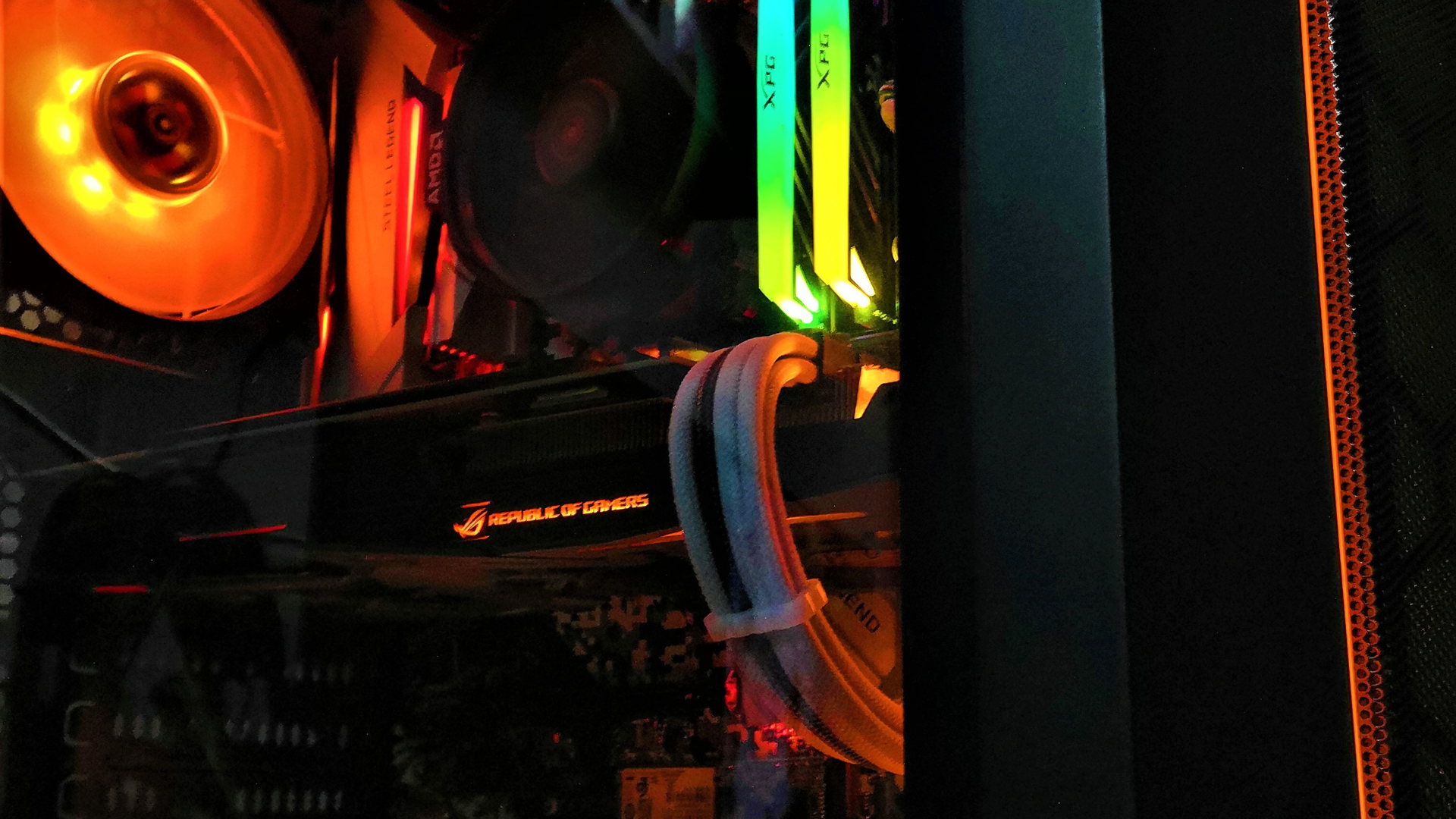

In compact cases horizontal mounting is still your best bet — In compact cases, horizontal mounting is still your best bet (Image via Author | Deltias Gaming)

Vertical mounting has gained popularity in recent years due to its visual appeal. A vertically mounted GPU puts its faceplate, fans, and RGB lighting on full display with no sag, and many 2025 cases include built-in vertical brackets and PCIe riser cables. However, this can bring the card close to the side panel, reducing airflow to its fans. The rule of thumb when mounting the GPU vertically is to ensure that the card is not pressed too closely to glass or metal panels.

In worst-case scenarios, we can see a delta of up to 10 degrees Celsius between the card being mounted vertically or horizontally. Another thing to consider is that very high-end GPUs come with vapor chambers, which might underperform when oriented vertically because they were designed for horizontal heat flow.

Key Factors That Influence Thermals

Spacing from the side panel matters most. Mesh-paneled cases or cases offering at least 20 to 30 mm of clearance tend to avoid thermal issues. Many modern vertical mount kits, like Cooler Master’s V3 vertical mount, let the builder adjust the GPU distance to avoid airflow problems.
Airflow setup also matters. A strong intake at the front or bottom can compensate for any airflow loss caused by vertical placement. Larger or triple-fan GPUs suffer more from tight spacing than compact models or liquid-cooled setups. With a vertical setup, your best option is to achieve the perfect chimney setup when mounting the GPU vertically.
Riser cable quality doesn’t directly affect temperatures, but it matters for performance and stability. A PCIe 4.0-rated cable typically keeps performance loss under 1 percent, while PCIe 3.0 cables may introduce larger drops (up to 10 percent in some games).

How To Keep Temperatures Under Control in Vertical Mounting Setups

GPU sag is a problem you might face with a horizontal setup (Image via Author | Deltias Gaming)

If the aesthetic of vertical mounting matters to you, there are practical ways to minimize its downsides.

First, choose a case or kit that lets you pull the GPU away from the panel. This cuts down on hot air buildup.
Add a set of intake fans near the GPU to supply cool air directly.
Open or mesh side panels help maintain airflow without needing liquid cooling. For those using AIO GPUs or water blocks, vertical placement matters less thermally since their coolers rely on external radiators, but ensure the pump is not at the highest point of the loop, as that tends to push the bubbles into the pump head, which can make the pump run dry and shorten its lifespan.
Finally, always monitor temps via MSI Afterburner, HWMonitor, or similar tools after installation. If temps stay safely under 80°C in full-load scenarios, the vertical mount is not a deal-breaker.

Vertical vs. horizontal GPU mounting presents a clear trade-off. Horizontal placement typically yields the best temperatures and simplicity. Vertical mounting offers style and sag resistance, but can nudge temps higher in tight builds. That said, with a well-designed case, proper spacing, and balanced airflow, the temperature penalty often stays within control. If you care about showcasing your GPU and prefer a cleaner build, choose vertical mounting, but don’t skip planning for airflow and clearance.
